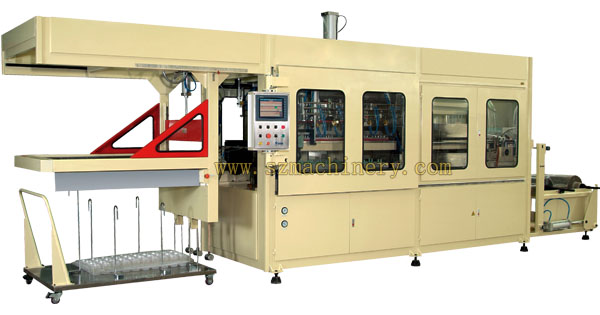

High-speed Vacuum Forming Machine
|

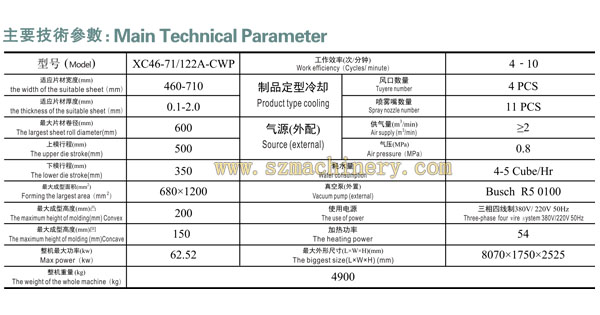

Model |
XC46-71/122A-CWP |
Work efficiency（Cycles/ minute） |
4--10 |
|
|
The width of the suitable sheet (mm) |
460-710 |
Product type cooling |
Tuyere number |
4PCS |
|
The thickness of the suitable sheet (mm) |
0.1-2.0 |
Spray nozzle number |
11PCS |
|
|
The largest sheet roll diameter(mm) |
600 |
Source (external) |
Air supply (m3/min) |
≥2 |
|
The upper die stroke(mm) |
500 |
Air pressure（MPa） |
0.8 |
|
|
The lower die stroke(mm) |
350 |
Water consumption |
4-5Cube/Hr |
|
|
Forming the largest area（mm2） |
680×1200 |
Vacuum pump (external) |
Busch R5 0100 |
|
|
The maximum height of molding(mm) Convex |
200 |
The use of power |
Three-phase four wire system 380V/220V 50Hz |
|
|
The maximum height of molding (mm)Concave |
150 |
The heating power |
54 |
|
|
Max power（kw） |
62.52 |
The biggest size(L×W×H) (mm) |
8070×1750×2525 |
|
|
The weight of the whole machine（kg） |
4900 |
|||
