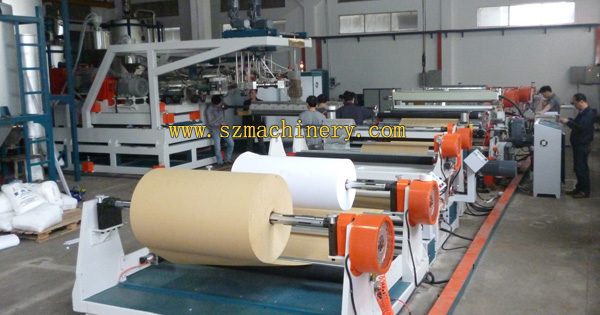

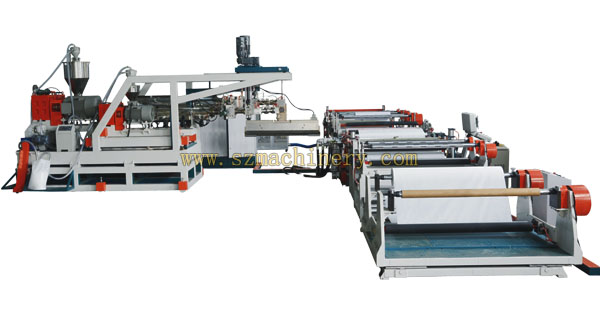

高速覆合淋膜机
|

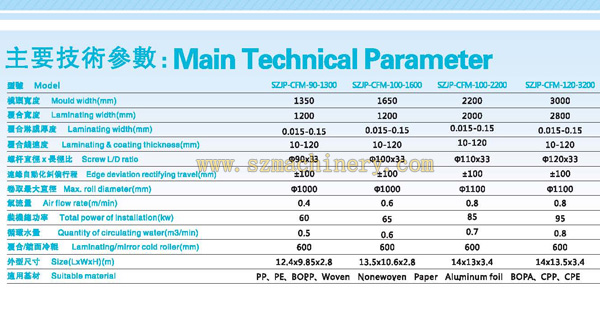

设备型号: |
SZJP-CFM-90-1300 |
SZJP-CFM-100-1600 |
SZJP-CFM-100-2200 |
SZJP-CFM-120-3200 |
|
模头宽度 (mm): |
1350 |
1650 |
2200 |
3000 |
|
覆合宽度 (mm): |
1200 |
1200 |
2000 |
2800 |
|
覆合淋膜厚度 (mm): |
0.015 - 0.15 |
|||
|
覆合线速度 (mm): |
10 - 120 |
|||
|
螺杆长径比: |
90x33 |
100x33 |
110x33 |
120x33 |
|
边缘自动纠偏 (mm): |
+/-100 |
|||
|
卷取最大直径 (mm): |
1000 |
1000 |
1100 |
1100 |
|
气流量 (m/min): |
0.4 |
0.6 |
0.8 |
0.8 |
|
装机总功率 (kw): |
60 |
65 |
85 |
95 |
|
循环水量 (m3/min): |
0.5 |
0.6 |
0.7 |
0.8 |
|
覆合/镜面冷辊 (mm): |
600 |
|||
|
外型尺寸 (m): |
12.4*9.85*2.8 |
13.5*10.6*2.8 |
14*13*3.4 |
14*13.5*3.4 |
|
适用基材： |
PP, PE, BOPP, Woven, None woven Paper, aluminum foil, BOPET, BOPA, CPP, CPP |
|||
